A route card for detailing the route a material will take during manufacturing, from reference to any pre-start checks, and each process, operator and inspection date. Comments and notes can be added along with final inspection sign-off.

Effective Form Templates

This form template is supplied in fully editable MS Word format and can be easily customised and edited. The document uses pre-defined style formatting throughout, with all text in Calibri font for improved readability.
The following document labelling is included in the footer:

• Form number and title
• Information-classification
• Version
• Page number / total pages

alphaZ documents - beautifully designed, tried and tested form templates. No junk, jargon or unnecessary fields. Simple and usable form templates developed over 25 years through practical use in the real world.

Further Reading

Further guidance on production routing and inspection:

• Controlling Production and Service Delivery Under ISO 9001
• Quality Management Systems Explained
• Requirements for Products and Services (Clause 8.2)

Logo Update Service

Download this form template with your company name and logo already added!
Document Preparation is included with the alphaZ subscription.

How to Download

This file is included in the alphaZ subscription. This form is also included in the ISO 9001 Toolkit and every alphaZ ISO toolkit that covers quality management, so the toolkit route gives you this file plus everything else you need in one download.

Need Help Implementing?

If you'd like hands-on help setting up your route cards and in-process checks, or your wider quality management system, our remote support services provide direct expert input from our team, by the day, by project, or on an ongoing basis.

Route Card Template

A route card that follows a job through its process steps - pre-start checks that drawings are correct and material released, in-process checks with the frequency and tolerances required, and final checks and inspection. It keeps a job moving under control, one stage at a time.

A quality management system aligned with ISO 9001 (clause 8.5) expects production to be carried out under controlled conditions with checks at appropriate stages. A route card is the practical way to build those checks into the flow of the job.

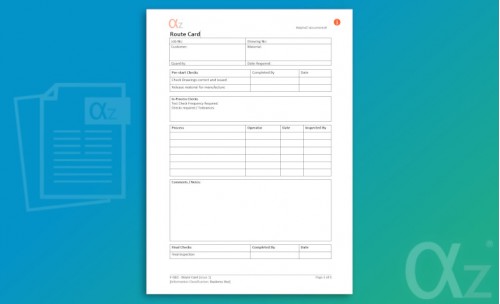

What's Included in this Route Card

The form is set out as a single route card:

• Job header - job and drawing number, customer, material, quantity and date required
• Pre-start checks - drawings correct and issued, and material released for manufacture, each signed and dated
• In-process checks - the process steps with operator, date and who inspected, plus required frequency and tolerances
• Final checks - final inspection signed and dated

Who Needs a Route Card?

Any manufacturer or fabricator that needs a job to pass through defined process steps with checks at each one. It suits businesses working to ISO 9001, and to BS EN 1090 where in-process inspection matters.

Pairs with the Fabrication Job Card

For the wider job detail around the routing - customer, drawings, weld procedures and work log - the F-Q48 Fabrication Job Card sits alongside the route card.
